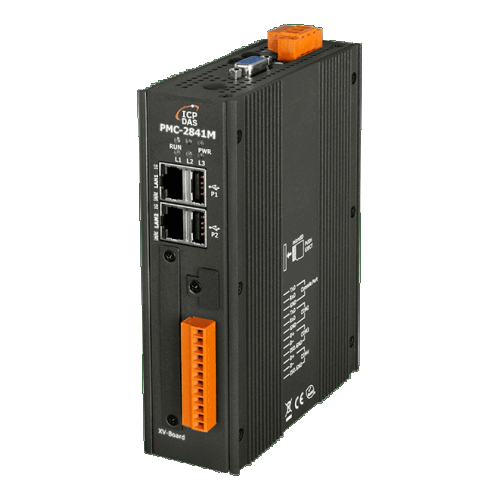

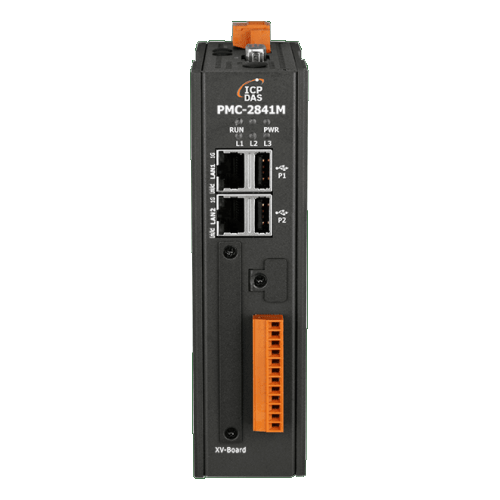

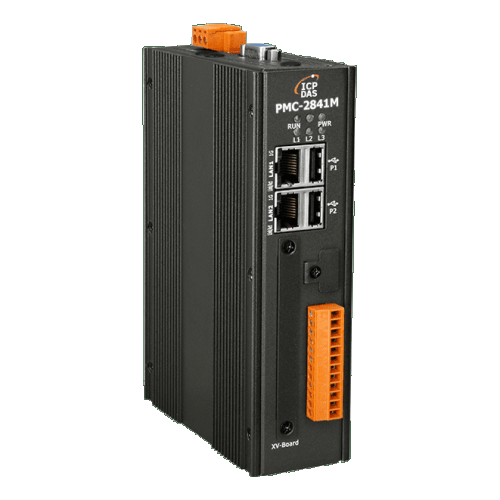

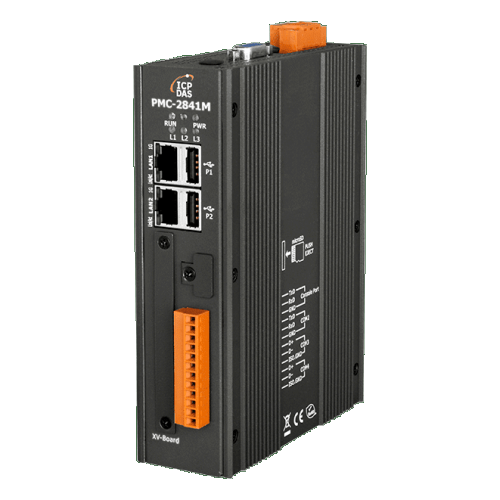

PMC-2841M

Advanced Industrial IoT Power Meter Concentrator

Introduce

  • No extra software tool is required, using browsers to perform system operations
  • No more programming, Web pages provided for control logic editing.
  • Support at most 48 modules (Include ICP DAS Modbus Power Meters and Modbus I/O modules)
    • COM3 and COM4 can connect to Max. 16 Modbus RTU modules individually.
    • LAN can connect to Max. 16 Modbus TCP modules.
    • Support at most 4 ICP DAS PM-4324 series Power Meters
  • Display real-time or historical power data; Provide power data statistics report
  • Power data logger and data files send back function supported.
  • Built-in IF-THEN-ELSE logic engine for power demand management
  • Support LINE, Telegram, WeChat and Email message notification
  • Support Modbus TCP/RTU, SNMP, MQTT, FTP and CGI protocols.
  • Support connection with IoT Cloud Platform (Microsoft Azure, IBM Bluemix, Amazon Web Services) and IoTstar Cloud Management Software
  • Complete information security protection mechanism - HTTPS, VPN, SNMP v3,SFTP, FTPS, and Blacklist/Whitelist
